Imagine turning on your kitchen tap, expecting a refreshing glass of clean, safe drinking water, only to find it discolored, foul-smelling, or worse – contaminated with something you definitely don’t want in your home. This unsettling scenario is the very real danger that backflow prevention aims to avert. While often unseen and unheard, the potential for backflow to contaminate your home’s potable water supply is a serious public health concern.
At Winstar Hardware, we believe that understanding your home’s plumbing system is key to maintaining a safe and healthy living environment. That’s why we’ve put together this complete homeowner’s guide to backflow prevention. We’ll demystify what backflow is, explain how it happens, highlight the critical areas in your home where it’s a risk, and guide you through the devices and practices that ensure your drinking water remains pure and protected. Protecting your family starts with protecting your water.
1. What is Backflow, and Why Should You Care?
To truly grasp the importance of backflow prevention, we first need to define the problem itself. Backflow is essentially the undesirable reversal of the flow of water (or other liquids, gases, or substances) from a potentially contaminated source into the clean, potable (drinkable) water supply system.
Think of your home’s plumbing as a one-way street for clean water coming in and waste going out. Backflow is like that street suddenly becoming a two-way highway, allowing dirty traffic to reverse course and drive back towards the source of clean water.
Why is it so dangerous?
The danger of backflow lies in cross-contamination. Your potable water supply (the water you drink, cook with, and bathe in) can become mixed with non-potable, unsafe water from various sources. These contaminants can include:
- Wastewater: From toilets, sinks, and washing machines.
- Chemicals: Fertilizers, pesticides, cleaning agents, swimming pool chemicals.
- Irritants: Soap, detergents, rust, sediment.
- Bacteria and Viruses: Pathogens from sewage or stagnant water.
Even a small amount of backflow can render your entire household water supply unsafe for consumption, posing significant health risks from gastrointestinal illnesses to more severe infections. This makes backflow prevention not just a plumbing technicality, but a critical public health measure.
2. The Two Forces Behind Backflow: Backpressure and Backsiphonage
Backflow doesn’t just happen randomly; it’s caused by specific hydraulic conditions within the water system. Understanding these two forces is fundamental to understanding backflow prevention.
Backpressure
Backpressure occurs when the pressure in the non-potable system (the contaminated side) becomes greater than the pressure in the potable water supply system. This pressure differential literally pushes the contaminated water back into the clean supply.
Common Scenarios for Backpressure:
- Booster Pumps: If a property has a pump to increase water pressure (e.g., for irrigation or a multi-story building), and this pump malfunctions or is improperly installed, it can create higher pressure in the secondary system than in the main supply.
- Thermal Expansion: In a closed hot water system, heated water expands. If there isn’t an expansion tank, this increased pressure can force hot (potentially stagnant or treated) water back into the cold-water supply lines.
- Elevation Differences: A contaminated water source located at a higher elevation than a clean water connection can create backpressure.
- Connection to Non-Potable Systems: Directly connecting to a system with higher pressure, such as industrial processes or a well pump that’s not isolated.
Backsiphonage
Backsiphonage occurs when there is a sudden loss or reduction in pressure in the potable water supply system, creating a vacuum or negative pressure. This negative pressure then “sucks” non-potable water from a connected source back into the clean water lines.
Common Scenarios for Backsiphonage:
- Water Main Breaks: A break in a municipal water main can cause a dramatic drop in pressure in surrounding properties.
- High Water Demand: Firefighting efforts or multiple large water withdrawals (e.g., simultaneously filling swimming pools in a neighborhood) can significantly lower local water pressure.
- Pump Malfunctions: A pump failure in the main water system.
- Repairs or Maintenance: Shutting down parts of the water system for repairs can create negative pressure.
| Cause | Description | Common Scenarios | Prevention Focus |
| Backpressure | Non-potable system pressure > Potable system pressure | Booster pumps, thermal expansion, elevated tanks, industrial connections. | Pressure differential, device installation. |
| Backsiphonage | Negative pressure (vacuum) in potable system “sucks” contaminants back in. | Water main breaks, high water demand (firefighting), repairs, pump failures. | Air gap, vacuum breakers. |
3. Common Backflow Risks in Your Home: Where Contamination Can Occur
You might be surprised at how many potential cross-connections exist in and around your home where backflow prevention is critical. Awareness of these points is your first line of defense.
Outdoor Faucets (Hose Bibs) and Garden Hoses
This is perhaps the most common and often overlooked risk. If your garden hose is submerged in a bucket of soapy water, a pet’s drinking bowl, a swimming pool, or a pond while connected to an open faucet, a sudden drop in municipal water pressure can siphon that contaminated water directly back into your home’s drinking supply.
- Risk: Fertilizers, pesticides, pool chemicals, dirty water.
Irrigation Systems
Automatic sprinkler systems are a significant backflow risk because they often draw water that has come into contact with soil, fertilizers, and pesticides. Without proper backflow prevention, this contaminated water can easily be siphoned back into your domestic supply.
- Risk: Soil pathogens, fertilizers, pesticides, stagnant water.
Toilets
Toilets have a fill valve that prevents the tank water from flowing back into the supply line. However, older or malfunctioning fill valves can create a cross-connection if the water level in the tank rises too high or if there’s significant backsiphonage.
- Risk: Tank water (which can contain cleaning tablets, bacteria, etc.).
Boilers and Hydronic Heating Systems
These closed-loop heating systems often contain chemicals (corrosion inhibitors) that prevent rust and scale buildup. If improperly connected, pressure fluctuations can force this chemically treated water back into the potable water system.
- Risk: Heating system chemicals.
Sinks with Handheld Sprayers or Utility Sinks
If a handheld sprayer or a hose attached to a utility sink is left submerged in dirty water (e.g., dishwashing water, mop bucket water), backsiphonage could pull that water into the clean supply.
- Risk: Soapy water, cleaning chemicals, food particles.
Washing Machines
Similar to sinks, if the discharge hose from a washing machine is submerged in standing dirty water in a laundry tub, it poses a backsiphonage risk.
- Risk: Detergents, dirty water, bacteria.
Water Treatment Systems (e.g., Softeners)
Some water treatment systems require a drain connection. If this connection isn’t properly air-gapped or protected, there’s a risk of the drain water (which may contain brine or other treated waste) backflowing into the potable supply.
- Risk: Brine, treated water waste.
4. The Solutions: Essential Backflow Prevention Devices
Fortunately, there are several reliable devices and methods specifically designed for backflow prevention. The type you need depends on the specific hazard level. You can find all these solutions and expert advice at Winstar Hardware.

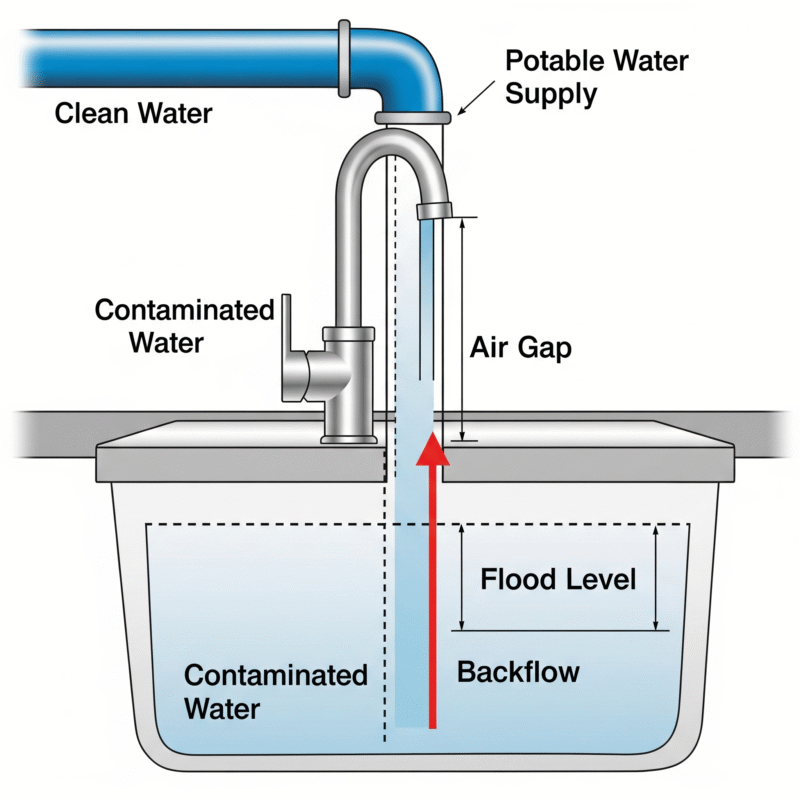

Air Gap (The Ultimate Protection)
The air gap is the simplest and most effective form of backflow prevention. It’s a physical, vertical separation between the lowest point of a water outlet and the flood level rim of the fixture or receptor it’s discharging into. This physical break means contaminated water cannot possibly flow upwards into the clean water supply.
- How it works: Imagine your kitchen faucet. There’s always an air gap between the faucet’s spout and the maximum water level in your sink. If the water level in the sink rises above the spout, it means your drain is clogged, not that the water can flow back into the faucet.
- Common uses: Dishwashers (drain hose must connect above the drain trap’s flood level), washing machines (discharge hose into a utility sink or standpipe), and water softeners (drain hose into a floor drain).
- Pros: 100% effective, no mechanical parts to fail.
- Cons: Requires sufficient space, not always practical for all connections.

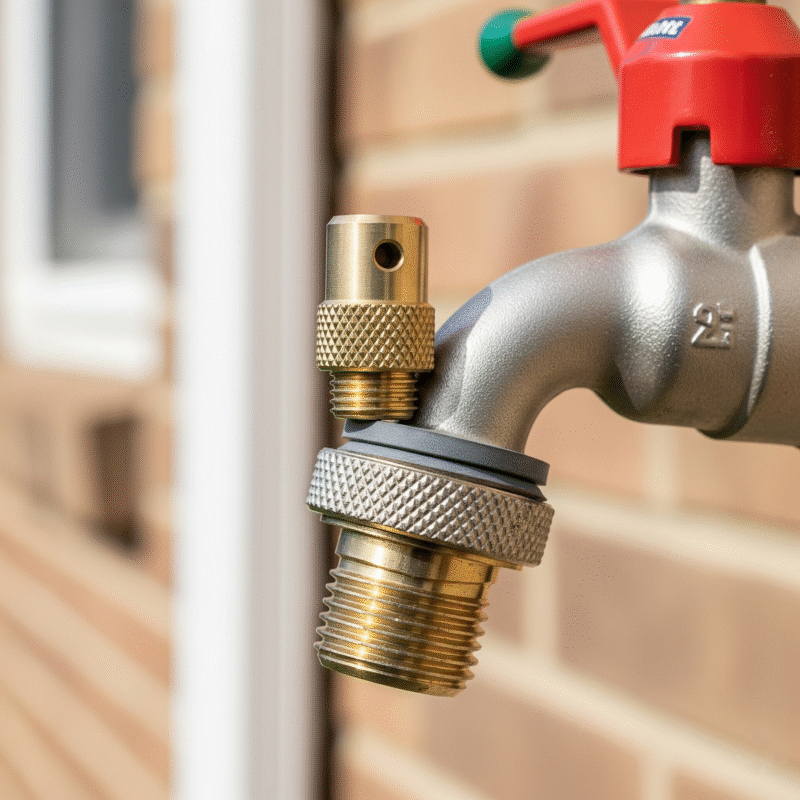

Hose Bib Vacuum Breaker (HBVB)
This is a small, inexpensive device that screws directly onto an outdoor faucet (hose bib). It contains a check valve and an air inlet. When pressure drops, the check valve closes, and the air inlet opens, breaking any vacuum that could cause backsiphonage.
- How it works: When the water supply is shut off (or pressure drops), it allows air into the hose to prevent dirty water from being siphoned back. For a visual guide, watch this video on how a hose bib vacuum breaker works.
- Common uses: All outdoor faucets connected to garden hoses. Many building codes now require these on all new construction.
- Pros: Inexpensive, easy to install (DIY-friendly), very effective for low-hazard backsiphonage.
- Cons: Only protects against backsiphonage, can sometimes leak or get stuck open if not properly maintained.

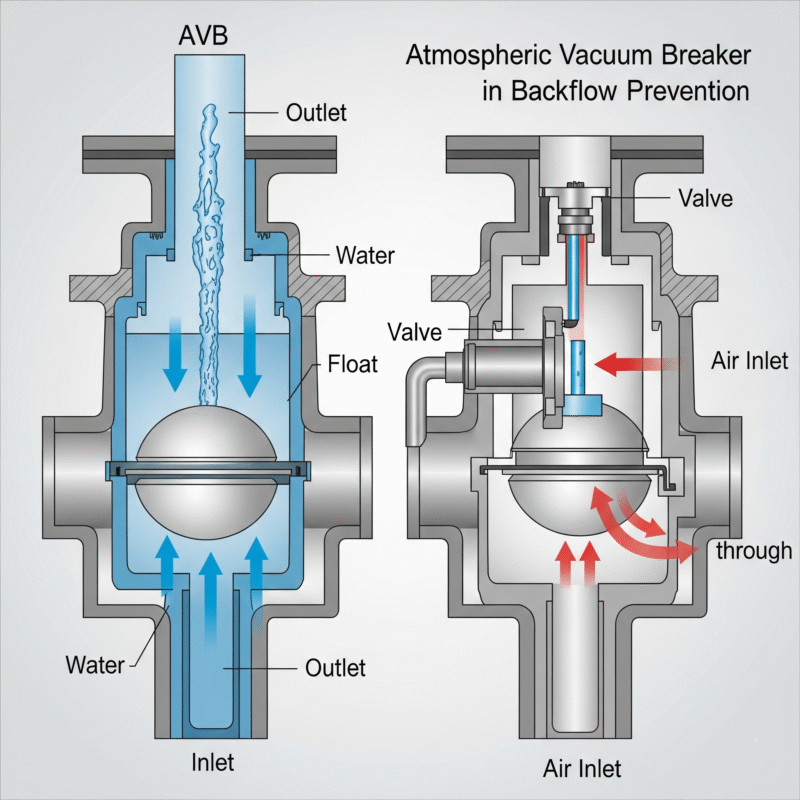

Atmospheric Vacuum Breaker (AVB)
Similar to the HBVB but designed for continuous pressure applications (e.g., some irrigation systems before the last valve). It’s typically installed at least 6 inches above the highest point of water use.
- How it works: Contains a float and a disk. When water flows, the disk is lifted. When flow stops or pressure drops, the disk drops, and air is admitted to prevent backsiphonage. This video by The Plumbing Academy explains more on the function of an atmospheric vacuum breaker.
- Common uses: Residential irrigation systems, laboratory faucets.
- Pros: Effective against backsiphonage for continuous pressure.
- Cons: Must be installed at least 6 inches above the flood level, not suitable for backpressure, cannot be under continuous pressure for more than 12 hours.
Pressure Vacuum Breaker (PVB)
A more robust mechanical device than an AVB, often used in irrigation systems. It consists of a spring-loaded check valve and an independently operating, spring-loaded air inlet valve.
- How it works: Protects against backsiphonage and a small amount of backpressure. The check valve prevents backflow, and the air inlet opens if pressure drops below atmospheric. Read this article by The Spruce for pressure vacuum beaker basics.
- Common uses: Irrigation systems where there’s a risk of backsiphonage.
- Pros: More reliable than AVBs, can handle slight backpressure.
- Cons: Must be installed at least 12 inches above the highest point of use, requires annual testing by a certified technician.

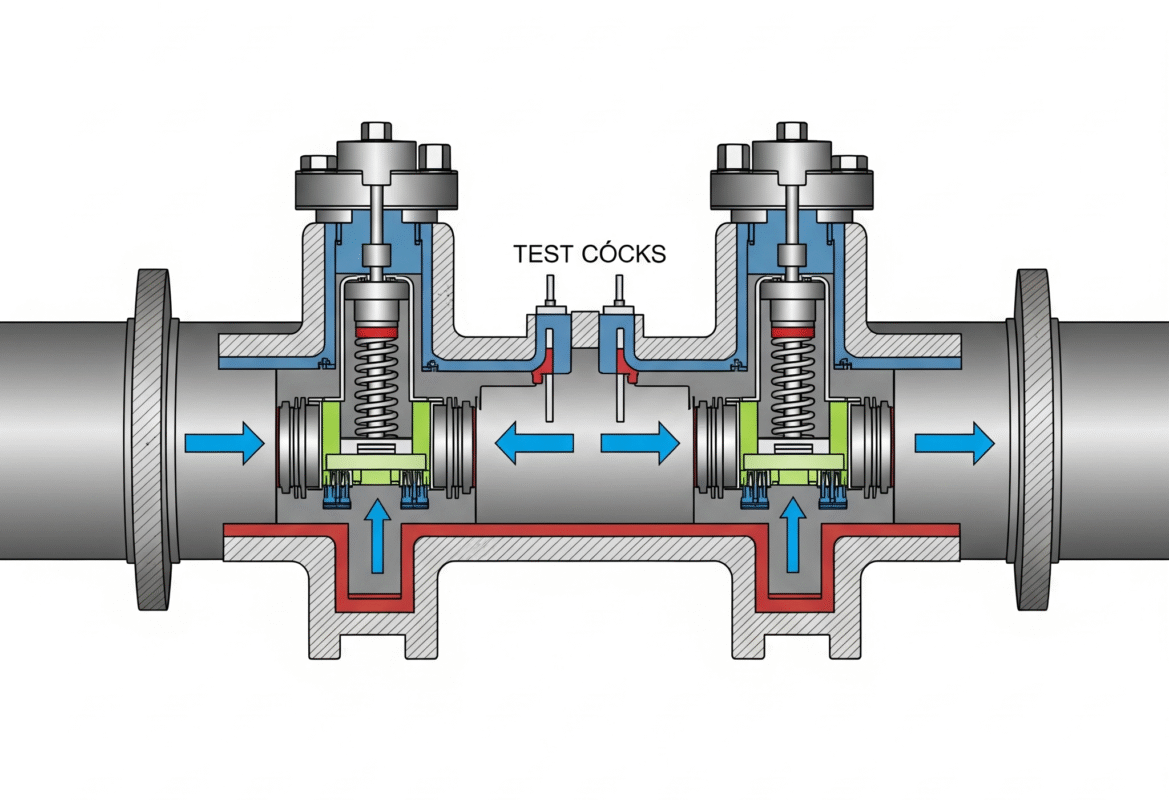

Double Check Valve Assembly (DCVA)
This device consists of two independently operating, spring-loaded check valves, usually with two test cocks for verification. It’s designed to protect against both backpressure and backsiphonage, but typically for low-to-moderate hazard conditions.
- How it works: Each check valve acts as a barrier. If one fails, the other should still hold.
- Common uses: Fire sprinkler systems (non-toxic), main water service lines for low-hazard connections, commercial buildings.
- Pros: Protects against both backpressure and backsiphonage, reliable.
- Cons: Requires annual testing, can be larger and more expensive than vacuum breakers.

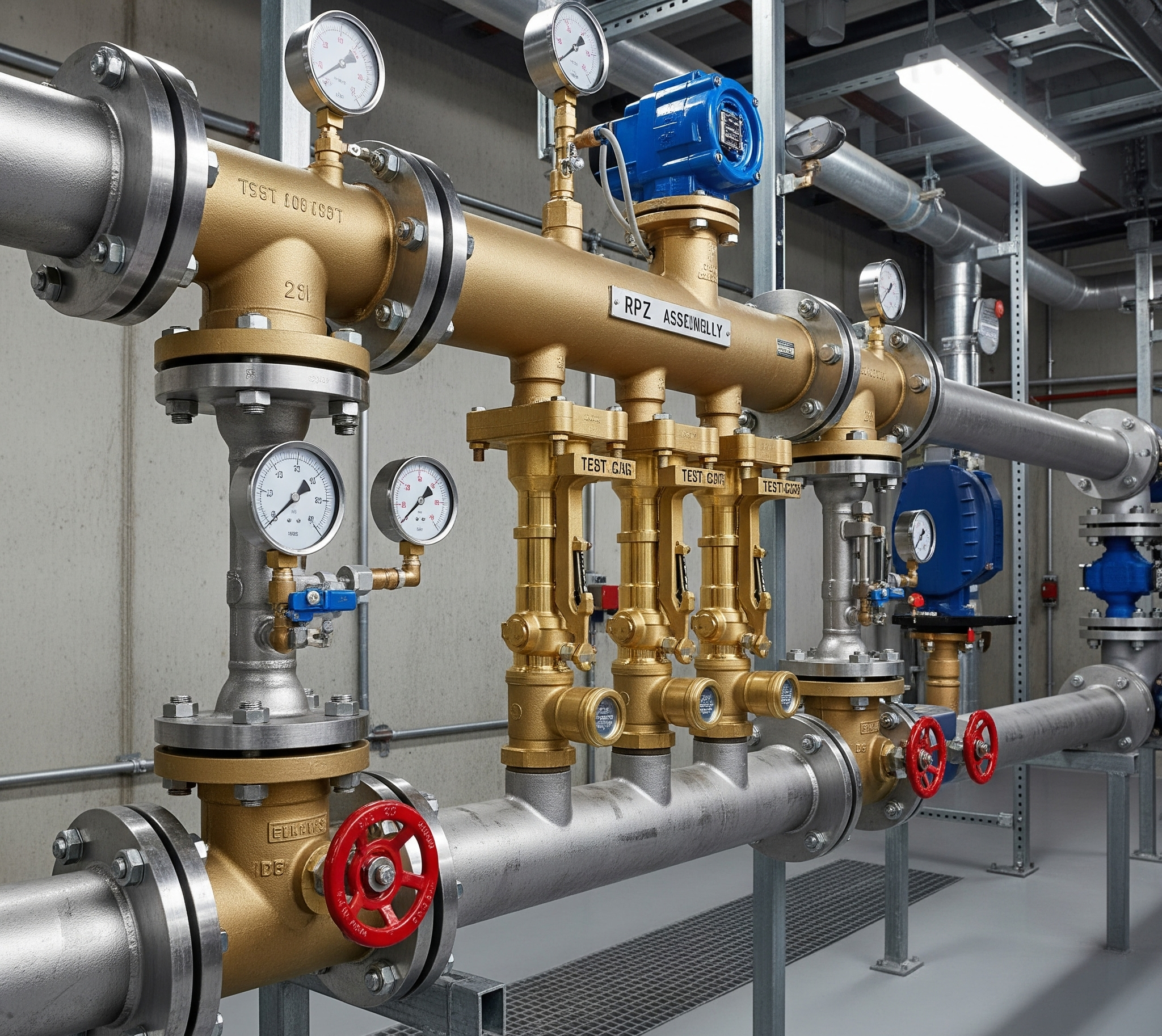

Reduced Pressure Zone (RPZ) Assembly
The RPZ is the gold standard for high-hazard backflow prevention. It’s a complex device featuring two independently operating, spring-loaded check valves, a hydraulically operated differential relief valve (located between the check valves), and four test cocks. The relief valve opens to vent water to the atmosphere if pressure drops in the zone between the two check valves, preventing any backflow.
- How it works: Creates a “reduced pressure zone” in the middle. If either check valve leaks or pressure reverses, the relief valve dumps water, preventing contamination.
- Common uses: Protecting against high-hazard cross-connections like boiler systems, chemical processing, car washes, and fire sprinkler systems with chemical additives.
- Pros: Highest level of protection, extremely reliable for high-hazard situations.
- Cons: Most expensive, requires annual testing and maintenance by a certified technician, must be installed above ground and in a location where discharged water won’t cause damage.
This video shows in detail how a reduced pressure zone assembly works.
| Device | Protection Against | Hazard Level | Common Uses | Notes | |
| Air Gap | Backpressure, Backsiphonage | High | Sinks, Laundry Tubs, Water Softeners | Easiest, most effective, non-mechanical. | |
| Hose Bib Vacuum Breaker (HBVB) | Backsiphonage | Low | Outdoor Faucets | Simple, DIY install, often required by code. | |
| Atmospheric Vacuum Breaker (AVB) | Backsiphonage | Low | Irrigation, Lab Faucets | Must be installed above flood level. | |
| Pressure Vacuum Breaker (PVB) | Backsiphonage (light Backpressure) | Medium | Irrigation Systems | Requires annual testing. | |
| Double Check Valve Assembly (DCVA) | Backpressure, Backsiphonage | Low-Medium | Fire Systems (non-toxic), Main Lines | Requires annual testing, larger installation. | |
| Reduced Pressure Zone (RPZ) | Backpressure, Backsiphonage | High | Boilers, Chemical, High Hazard | Highest protection, requires annual testing/maintenance. |
5. Installation and Maintenance: Your Role in Backflow Prevention
While some devices like HBVB can be DIY, many backflow prevention devices require professional installation and, crucially, annual testing.
Professional Installation is Key
For devices like PVBs, DCVAs, and RPZs, professional installation by a licensed plumber is not just recommended, it’s often legally required. Incorrect installation can render the device ineffective or even create new problems. A professional plumber will ensure the device is correctly sized, properly located (e.g., correct height for AVBs/PVBs), and installed according to all local codes.
The Importance of Annual Testing
RPZ, DCVA, and PVB devices are mechanical and can fail over time. Many municipal water authorities require these devices to be inspected and tested annually by a certified backflow prevention tester. This testing ensures that the valves are working correctly and providing the necessary protection. Failure to comply can result in fines or even disconnection of your water service.
- Winstar Hardware can help you find reputable local plumbers and certified testers for your annual backflow prevention checks.
DIY Maintenance Tips
- Hose Bib Vacuum Breakers: Periodically check them for leaks. If they’re constantly dripping, they might need replacement. Ensure they are removed in freezing climates to prevent damage (not an issue in Kenya).
- Air Gaps: Regularly ensure that air gaps are maintained. Don’t let hoses or sprayers sit submerged in dirty water in sinks or tubs.
- Awareness: Be mindful of how you’re using water around chemicals. Never leave a hose unattended in a chemical solution or a dirty pool.
Local Building Codes and Regulations
Always check with your local water authority or building department about specific backflow prevention requirements in your area. Codes can vary significantly depending on the region, the type of property, and the specific cross-connection hazards present. For example, some areas mandate PVBs on all irrigation systems, while others might allow simpler solutions for residential use. Your plumber can help you navigate these regulations.
Conclusion: Protecting Your Most Precious Resource
The water that flows from your taps is a precious resource, fundamental to your family’s health and well-being. Understanding and implementing backflow prevention measures is not just a regulatory formality; it’s a proactive step in safeguarding that resource. From simple air gaps to sophisticated RPZ assemblies, the solutions for preventing contamination are accessible and effective.
At Winstar Hardware, we are dedicated to providing you with the knowledge and products you need to maintain a safe and functional home. By being aware of the risks and equipping your home with the right backflow prevention devices, you’re making an essential investment in the health of your family and the integrity of your water supply. Don’t leave your drinking water to chance – take action today for a safer tomorrow.
